Key Features
- High Power Output:
- Prime Power: 2200kW/2750kVA
- Standby Power: 2400kW/3000kVA
Suitable for large-scale industrial operations and commercial facilities requiring continuous or backup power.
- Fuel Efficiency:
Equipped with a Yuchai 16-cylinder turbocharged engine, offering exceptional fuel efficiency with consumption rates of 595.3L/h at 100% load. - Durable Engine Design:
The engine features a 13.5:1 compression ratio and is water-cooled for reliable performance in challenging environments. - Continuous Operation:
Capable of running continuously for 24 hours under variable load, with a 10% overload capacity for up to 1 hour every 12 hours. - Advanced Control System:
LCD display, multilingual interface, and real-time monitoring of engine and generator parameters. Includes local and remote start options, and supports IP65 protection against dust and water. - Flexible Power Options:
Can be synchronized with up to 32 units for parallel operation, offering scalability to meet increasing power demands. - High Protection Standards:
The unit is designed with an IP23 protection rating for the generator and IP65 for the control system, ensuring long-term durability in various conditions.

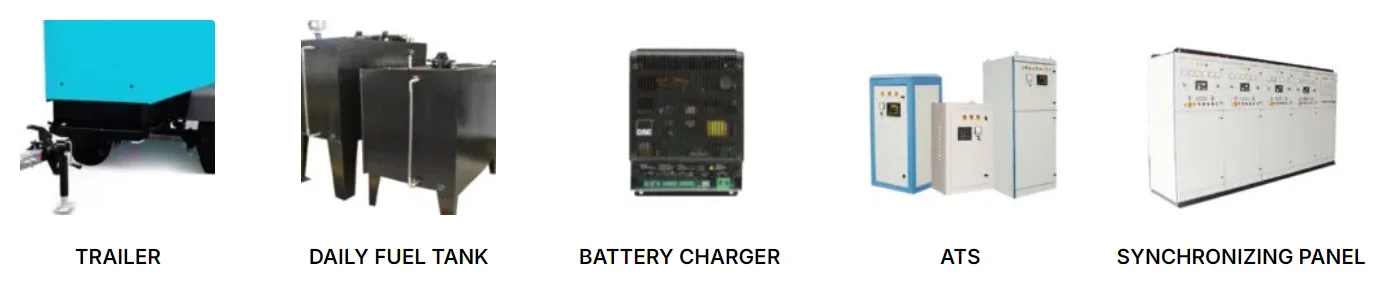

Optional Accessories
- Daily or bulk fuel tanks
- Residential or industrial silencers
- Trailer options
- Automatic Transfer Switch (ATS)

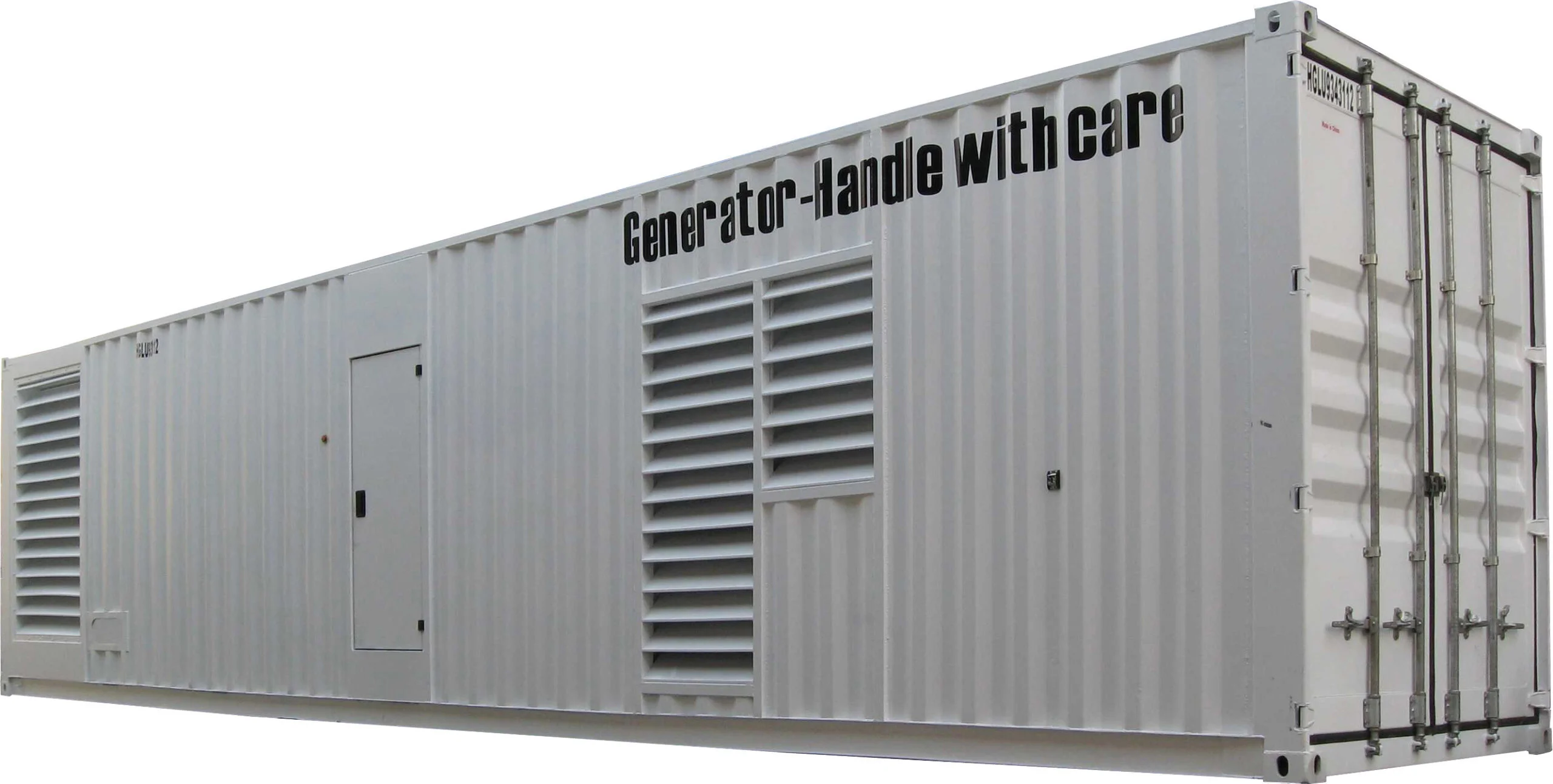

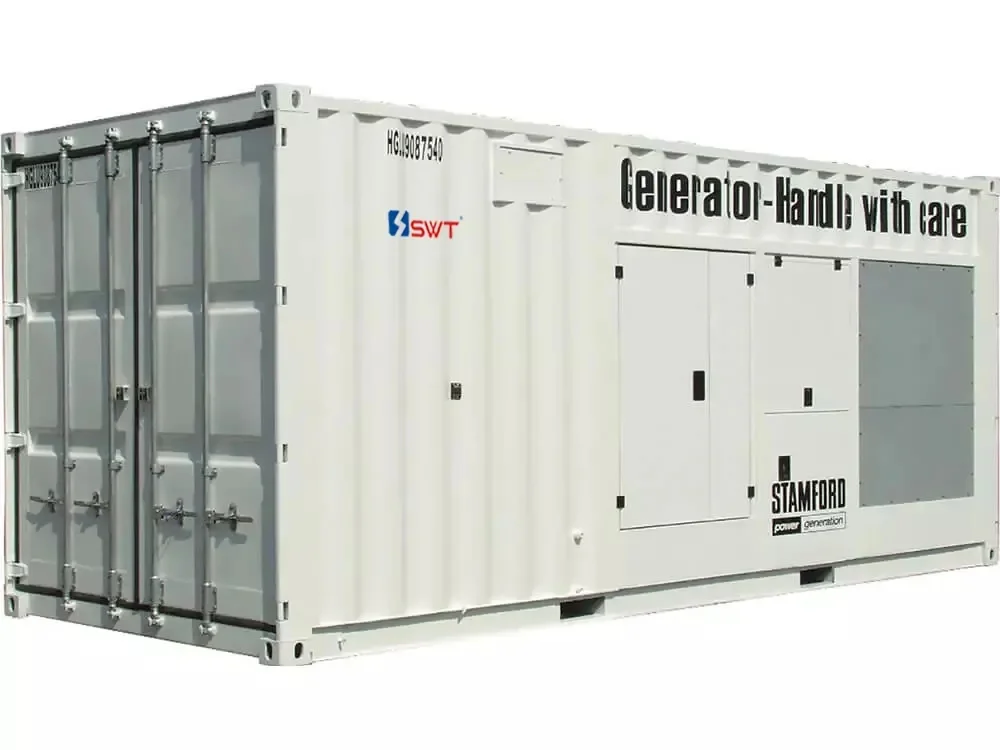

- Soundproof enclosures
- Cloud monitoring
View in detail
1. Low-emission MTU engine.
2. Brushless Mecc alte alternator.
3. User-friendly control panel.
4. Aluminium Radiator.
5. Durable Continental oil hose.
6. Anti-leakage joint.
7. Anti-vibration mount.
8. Sandblasted and anti-rust base frame.

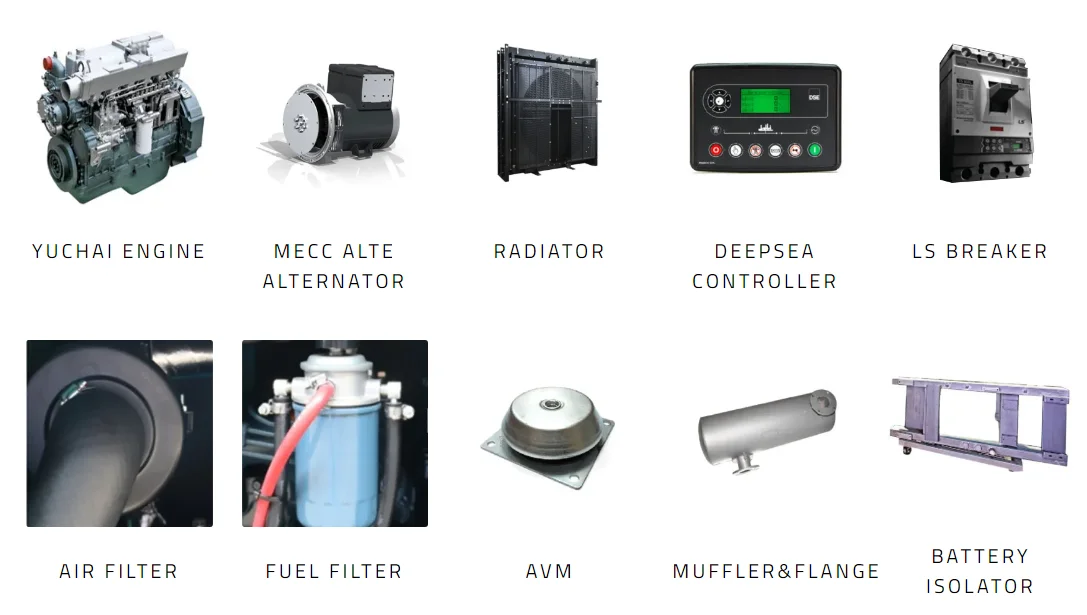

Standard Configuration
Optional
