The SWT Containerized Hybrid Energy Micro Power Station is a modular power solution integrating solar photovoltaic generation, lithium iron phosphate energy storage, diesel generator backup, intelligent EMS control and cloud-based monitoring into a containerized system.
Designed for remote sites, temporary facilities, industrial projects and areas with unstable grid access, the system prioritizes solar power and energy storage to reduce fuel consumption, lower noise and improve overall operating efficiency. When solar and battery power are insufficient, the diesel generator can be automatically started as standby power to maintain stable electricity supply.
SWT provides complete system integration, including PV modules, energy storage batteries, inverter and PCS system, diesel generator set, local monitoring interface, cloud monitoring platform, fire protection and containerized enclosure configuration.
Product Overview
| Item | Description |
| System Type | Containerized hybrid micro power station |
| Energy Sources | Solar PV, energy storage battery and diesel generator standby |
| Control System | EMS intelligent control system |
| Storage Battery | Lithium iron phosphate battery |
| Monitoring | Local monitoring interface and cloud monitoring via mobile APP and computer terminals |

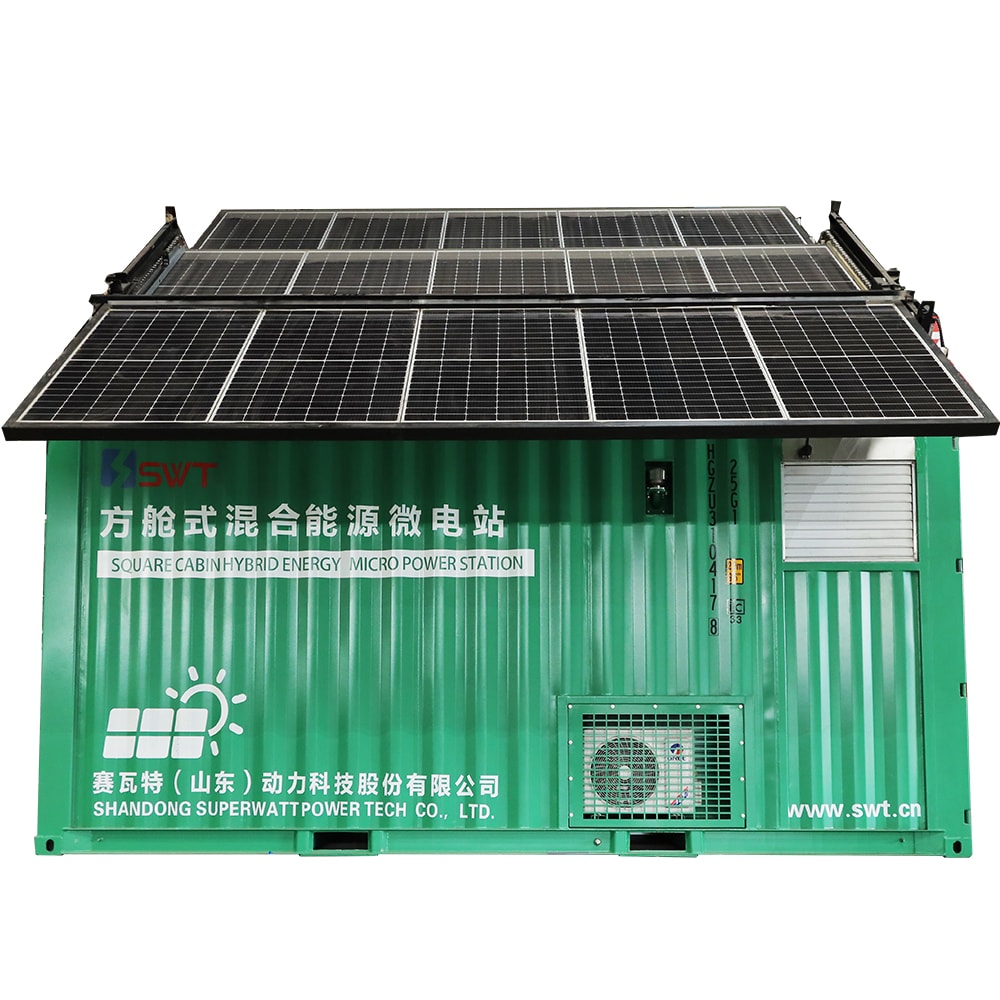

| Typical Configuration | Container with duty room and rooftop PV panels, or spread-type PV panel configuration |
| Main Application | Off-grid power supply, remote power projects, industrial sites, emergency support and temporary power demand |
Key Features
- Compact containerized structure for convenient transportation and site deployment.
- Reinforced container structure suitable for lifting and transfer.
- Solar power and battery storage are prioritized to reduce fuel consumption, emissions and noise.
- Multiple power supply modes for different load and site conditions.
- EMS intelligent control supports diesel generator standby operation and improves overall system utilization.
- Seamless switching between solar-storage inverter system and diesel generator input to reduce the risk of power interruption.
- Local monitoring and cloud monitoring enable real-time operating status tracking from site or remote terminals.

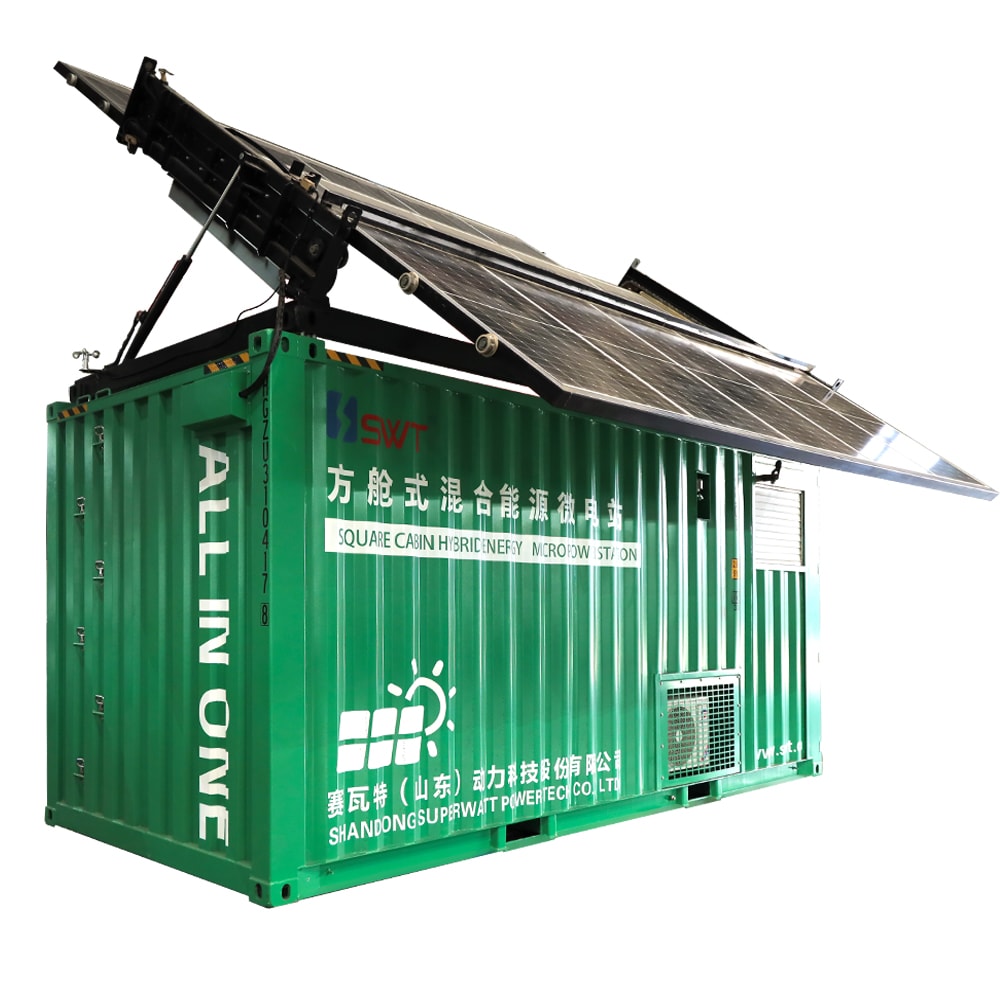

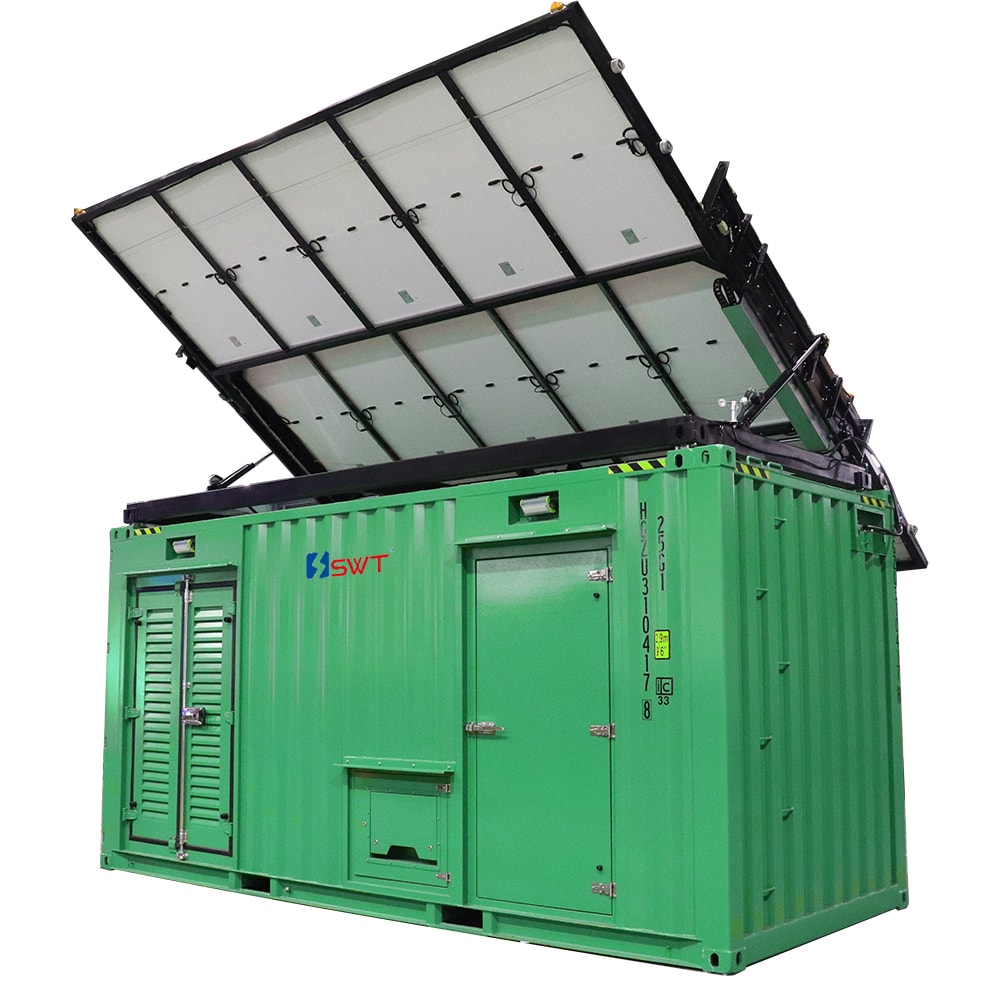

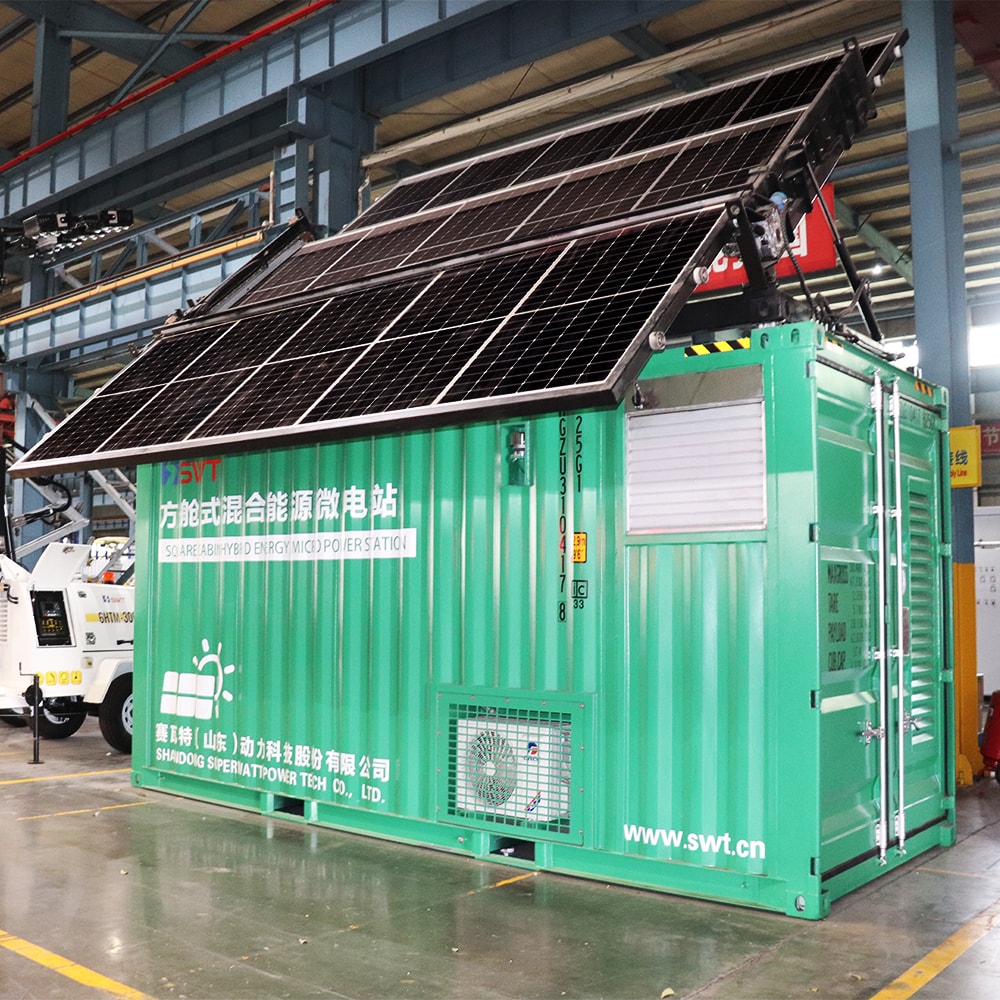

- Optional hydraulic PV panel spreading mechanism can be independently disassembled and transported.
Product Structure
- Photovoltaic assembly and PV modules
- MPPT / PV and storage inverter
- Bi-directional PCS or integrated inverter system
- Lithium iron phosphate energy storage battery
- Diesel generator set standby power
- EMS intelligent control system
- End-user power supply output
- Cloud monitoring system and local monitoring interface
Configuration Options
| Part Name | With Duty Room + Rooftop PV |
Spread Type |
| Diesel generator set | AC400V 24kW | Rated power 30kW, AC400/415V, 50Hz, 3P+N, silent type |
| Solar / diesel / storage integrated inverter system | EMS intelligent control system | EMS intelligent control system |
| Photovoltaic system | 5.2kWp | 5.5kWp |
| Energy storage system | Lithium iron phosphate battery, 50kWh | Lithium iron phosphate battery, 60kWh, with independent fire-fighting and display system |
| Energy storage converter / inverter | Bi-directional PCS, 30kW | Solar power storage integrated inverter, 30kW, AC400/415V/3P+N |
| PV panel spread mechanism | Rooftop photovoltaic panels | Hydraulic extension, independently disassembled and installed |
| Monitoring system | Local monitoring and cloud monitoring via mobile APP and computer terminals | Local monitoring and cloud monitoring via mobile APP and computer terminals |
| Fire protection | Automatic alarm and dry powder fire extinguisher | Dry powder fire extinguisher |
| Office / duty room | Daily office and duty room functions such as office furniture, lighting and air conditioning | Not specified in source brochure |
| Container enclosure | 20GP/20HC ISO container | 20GP/20HC ISO container |
Applications
- Remote off-grid power supply
- Mining, construction and industrial sites
- Temporary power for field offices and camps
- Emergency and backup power supply
- Telecom, security and monitoring sites
- Low-carbon power projects with unstable grid access
FAQ
Q: What is the main advantage of this hybrid micro power station?
A: It combines solar PV, energy storage and diesel generator standby in one containerized system, helping reduce fuel consumption while maintaining stable power supply.
Q: Can the system work in off-grid areas?
A: Yes. It is suitable for remote sites and areas with unstable or unavailable grid access.
Q: How does the diesel generator operate in this system?
A: The diesel generator works as standby power and can be intelligently controlled by the EMS for economic operation.
Q: Does the system support remote monitoring?
A: Yes. The system supports local monitoring and cloud monitoring through mobile APP and computer terminals.
Q: What battery type is used?
A: The source brochure specifies lithium iron phosphate energy storage batteries.
